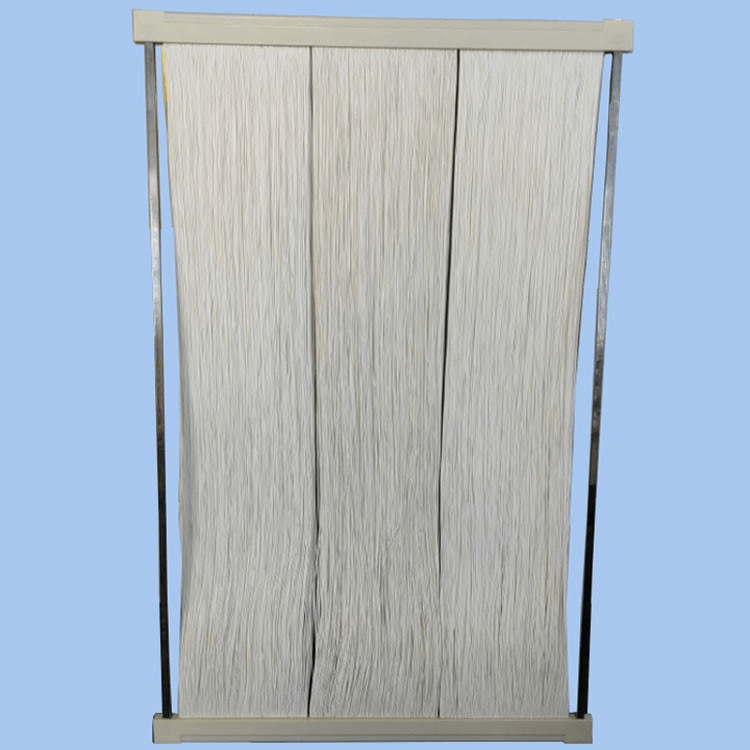

Submerged MBR Membrane NM-RMBR-1530 (MBR Element)
Model: NM-RMBR-1530

Size (LxWxH, mm): 1250 ×30 ×2000

Membrane area (m2): 30

Hollow fibers inside and outside diameter (mm): 1.0 / 2.2

Design Flux (L / h): 300---600

Working pressure (KPa): 10-50

Operating temperature (° C): 5-45

Work PH: 1-10

Hollow fibers: reinforced PVDF


Submerged MBR Membrane NM-RMBR-1530 (MBR Element)

Our membrane bioreactor (MBR) is very high quality and reasonable price, which is combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment.

NM-RMBR-1530 Membrane Element Specification
Type NM-RMBR-1530
Membrane Nominal pore size (μm) Material
0.06μm Micron (Average) PVDF, PET non-woven fabric and ABS resin
Membrane area per element (m2) 30 m2
Membrane Element dimension Height L2: 2000mm
Wide L1: 1250mm
Thickness W2: 30mm
Filtration Method Suction /Outside-in
Hollow fibers I /O diameter 1.0 /2.2 mm
Design flow rate 300—600 Liters/ Hour
(Sewage design 450 L/H)
Air diffuser Fine bubble, tube type,
EPDM rubber
Recommended usage Big capacity plants (>200 m3/d)
In-building wastewater reuse application
Municipal & industrial wastewater

The Benifits of MBR Membrane Application

  • System operates at a low pressure
  • Removes bacteria and viruses
  • Keeps essential minerals in water
  • Installs quickly and easily
  • Does not generate waste water
